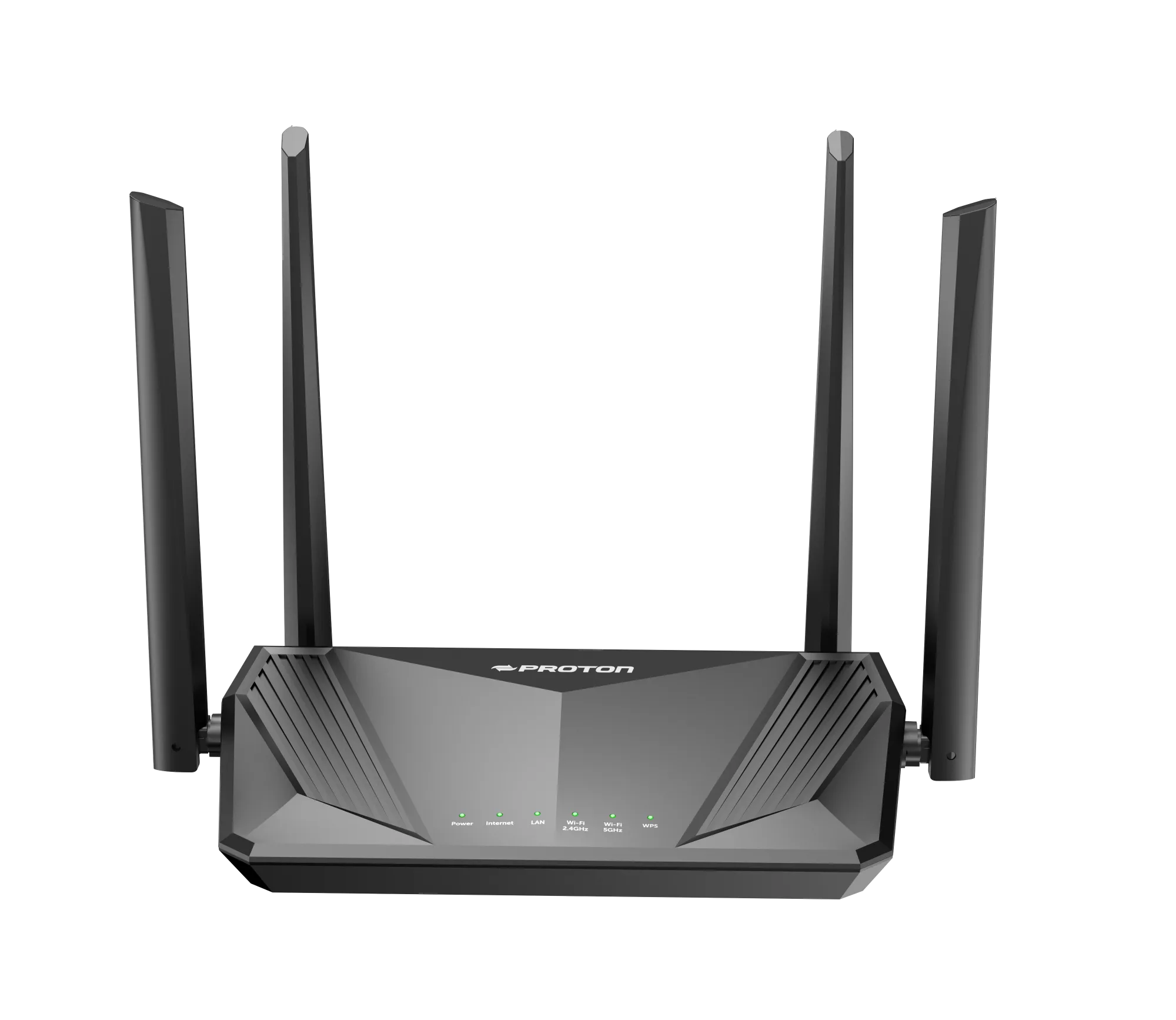

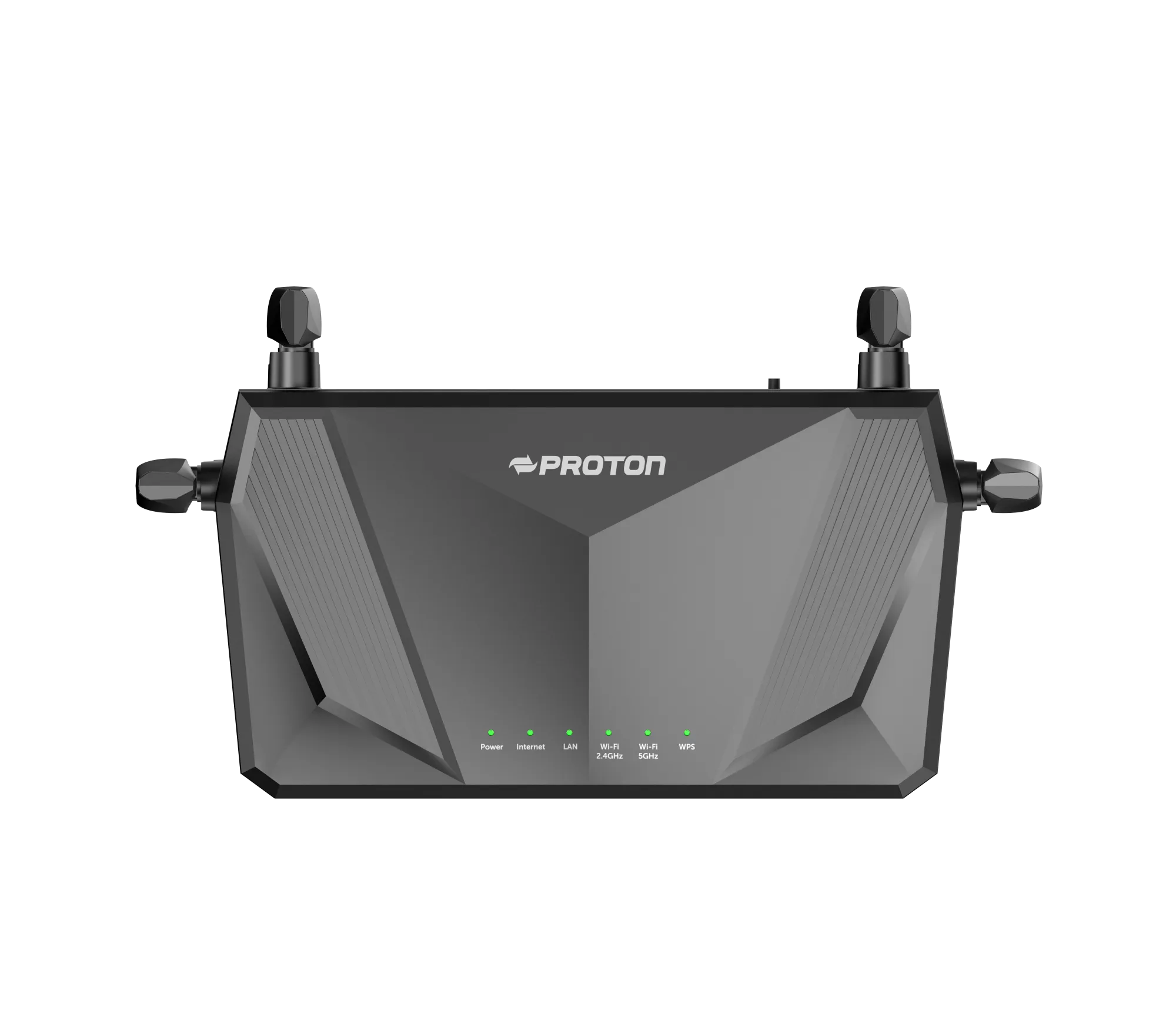

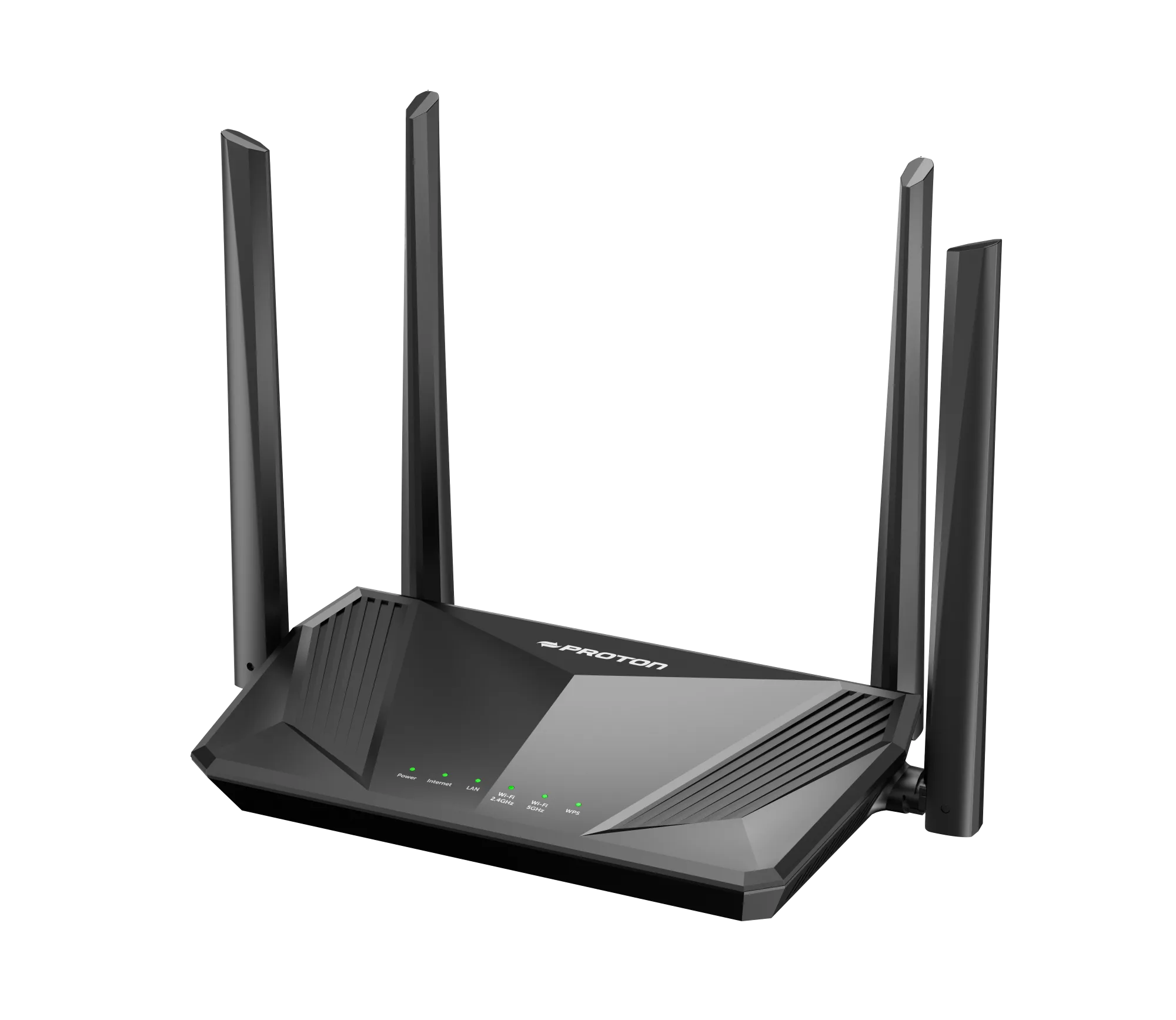

Proton Router Omnia ACM1224

Proton Router Omnia ACM1224

Wi-Fi Speed: 1200 Mbps (300 Mbps 2.4 GHz + 867 Mbps 5 GHz)
Wi-Fi Standards : IEEE 802.11 a/b/g/n/ac
Frequency Bands : 2.4 GHz: 2.412 – 2.4835 GHz5 GHz: 5.18 – 5.825 GHz
Channel Widths: 20 / 40 / 80 MHz
Wireless Modes: Router / Repeater
Transmit Power: 11n: 20 dBm ± 1.5 dBm11g: 20 dBm ± 1.5 dBm11b: 23 dBm ± 1.5 dBm11ac: 19 dBm ± 1.5 dBm
Encryption: WPA-PSK, WPA2-PSK, WPA/WPA2-PSK, WPA3-AES, WPA2-PSK/WPA3-AES
WPS: PBC / PIN
Other: MAC filtering, SSID broadcast control
CPU / Chipset: Realtek RTL8197FH-VG4 + RTL8812FR + RTL8367RB-VB/VC
Memory (RAM): 64 MB DDR2 SDRAM
Flash Storage: 16MB
LAN Ports: 3 × 10/100/1000 Mbps LAN (Auto MDI/MDIX)
WAN Port: 1 × 10/100/1000 Mbps WAN (Auto MDI/MDIX)
Buttons : Reset (5 s press), WPS (1 s press)
LED Indicators: Power, Internet, 2.4 G, 5 G, LAN, WPS
Antennas : 4 × External (2 × 2.4 GHz 5 dBi + 2 × 5 GHz 5 dBi)
Power Supply: DC 12 V / 1 A
WAN Types: PPPoE, Dynamic IP, Static IP
DHCP : Server / Client, Client List View
NAT / Routing: Built-in NAT, Routing table support
Other Functions: VPN Pass-through, UPnP, DMZ, ACL, Traffic Statistics
Interface: Web UI, Easy Setup Wizard
Firmware : Web upgrade supported
Backup / Restore : Config file import / export
